• Model NO.：HX-320C
• Computerized：Computerized
• Automatic Grade：Automatic
• Application：Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials, Earthquake Products
• Max Web Width：up to 320mm
• Die Cutting Length：178mm-470mm
• Die Cutting Speed：70m,Min
• Max Unwinding Diameter：500 Mm
• Max Rewinding Diameter：480mm
• Die Cutting Tolerance：+,-0.2mm
• Die Cutting Precision：0.1mm
• Slitting Speed：75m,Min
• Products Name：Foam Die Cutting Machine
• Leadtime：15-30 Days
• Transport Package：Plywood Case
• Specification：2100mmx1100mmx1500mm
• Trademark：HEXIN
• Origin：China Jiangsu
• HS Code：84414000
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. HX-320C Computerized Computerized Automatic Grade Automatic Application Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials, Earthquake Products Max Web Width up to 320mm Die Cutting Length 178mm-470mm Die Cutting Speed 70m/Min Max Unwinding Diameter 500 Mm Max Rewinding Diameter 480mm Die Cutting Tolerance +/-0.2mm Die Cutting Precision 0.1mm Slitting Speed 75m/Min Products Name Foam Die Cutting Machine Leadtime 15-30 Days Transport Package Plywood Case Specification 2100mmx1100mmx1500mm Trademark HEXIN Origin China Jiangsu HS Code 84414000 Production Capacity 100 Sets / Month

Product Description

Automatic EVA Foam Die Cutting Machine




Technical Parameters:


Model	HX-320C	HX-420C
Slitting Speed	75m/min	75m/min
Die Cutting Speed	70m/min	70m/min
Max Web Width	Up to 320mm	Up to 420mm
Max Unwinding Diameter	500mm	500mm
Max Rewinding Diameter	480mm	480mm
Die cutting length	178-470mm(7" - 18,5")	178-470mm(7" - 18,5")
Overall Diameter	2100mmx1100mmx1500mm	2230mmx1320mmx1700mm
Machine Weight	1200kgs	1800kgs
Power Supply	220V 50HZ(or according to your requirement)	220V 50HZ(or according to your requirement)

Machine Features:



HX-320C Foam Die Cutting Machine
 allows the production of stamped parts and labels as well as narrow slitted rolls from any

roll/reel material such as paper, foils, adhesive labels/sticker,PVC,PET,protective film, felt

pad,etc.

This robust machine consisting of a solid steel frame.The speed can be controlled
electronically.After reaching a preset number of labels or running meters, the machine

stops automatically.





1.Machine frame made of coated steel

2.Electronics integrated in the machine frame

3.unwinding with pneumatic compressed shaft for 3" cores

4.rewinding with pneumatic compressed shaft for 3" cores

5.Web tension adjustable via magnetic powder clutch

6.Web tension can be adjusted manually

7.Axial fan for suction of waste strip

8. The minimum slitting width is 8mm

9.unwinding is controlled by two photoelectric eyes

10.Web guiding system

11.Drive unit with one steel and one rubberized pressure roller

12.Adjustable pressure of the pressure roller

13.Web speed up to 75m/min depending on the product

14.Magnetic powder brake

15.Eight sets of slitting knives

Features:



1.Machine frame made of coated steel

2.Electronics integrated in the machine frame

3.unwinding with pneumatic compressed shaft for 3" cores

4.rewinding with pneumatic compressed shaft for 3" cores

5.Web tension adjustable via magnetic powder clutch

6.Web tension can be adjusted manually

7.Axial fan for suction of waste strip

8. The minimum slitting width is 8mm

9.unwinding is controlled by two photoelectric eyes

10.Web guiding system

11.Drive unit with one steel and one rubberized pressure roller

12.Adjustable pressure of the pressure roller

13.Web speed up to 75m/min depending on the product

14.Magnetic powder brake

15.Eight sets of slitting knives





Rotary die cutter station:



Die cutting length from 178-470mm(7" - 18,5")

Anvil cylinder

Ability to cut from top or bottom

Adjustable waste rewinder with magnetic powder clutch and 3" air shaft




Standard configurations:



1.One slitting station.

2.One die cutting station

3.With 1pc 3'' unwinding shaft, 2pcs 3'' rewinding shafts( the size of shafts    can do as your

 requirements).

4. With meter/number counter.

5. With two photoelectric eyes

6. With 8 sets of round slitting knives

7.One magnetic brake,two magnetic clutches

8.Machine has blower fan to blow away the trimmed edge





Options:



Die cutting mould (or magnetic cylinder+flexible die)

Extra set of blades

Laminating system

Winding shaft 1", 2" and 3''.

and much more



Application


1. It is applicable for paper,sandpaper,adhesive tape, protective film, copper foil,

aluminum foil,felt pad, OPP, PE, PVC,PET, printed label,sandpaper,sticker and cloth,etc.

2.This machine is widely used in the industries such as printing, packing,electronics
leather, plastic, etc.



Please  link below for the vedios of die cutting machine.



http://kunshanhexin.en.made-in-china.com          printed paper die cutting



http://kunshanhexin.en.made-in-china.com        film kiss rotary die cutting



http://kunshanhexin.en.made-in-china.com            sandpaper rotary die cutting

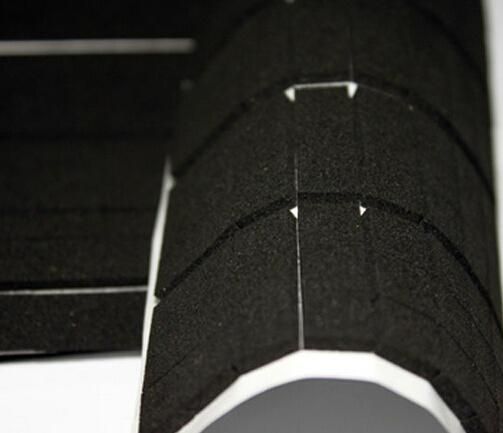

Die cutting products:(our machine can die cut any shape you want,only by change the die cutting mould.)

flexible dflexible die pictures for reference
