Automatic Double Heads Waste Paper Stripping Machine with Manipulator Arms and Conveyor After Die Cutting
Shantou Sinhosun international trade co., Ltd.- After-sales Service：Lifetime Service
- Warranty：One Year Warranty
- Stripping Way：Module Stripping
- Driving：Cross- Tropsch
- Picking：Manipulator
- Collecting：90 Degree Conveyor
Base Info
- Max.Stripping Size：450*350 mm
- Min.Mark Stripping Size：30*30 mm
- Stripping Paper Height：50-85 mm
- Stripping Speed：1-18 Times,Min
- Transport Package：Retort Stand and Vacuum Packaging
- Specification：4395*2000*2000 mm, 2400 kg
- Trademark：Sinhosun
- Origin：China
- HS Code：8441309000
- Production Capacity：1000 Pieces,Year
Description
The body of gantry structure, appearance of the atmosphere , sophisticated manufacturing.
Paper-Driving1.Cross- tropsch paper sets off headers immobile ; cross- tropsch products from paper-driving, avoid friction damage to the product;
2.Adopt the imported high precision ball screw and linear guide drive, avoiding the integrating error and positional error when machine is working.
Double HeadThe double heads can realize the stripping of the lock bottom boxes,self-locking boxes,special-shapes.
Module StrippingModular stripping instead of traditional thimble stripping, easy to install, reduce set up time less than 20 minutes.
ManipulatorAutomatic robot dispensing,controlled by the reversible gear motors,pneumatic clamp the,material,finished products to the conveyor belt,improve transport efficiency,reduce labor costs,and improve productivity.

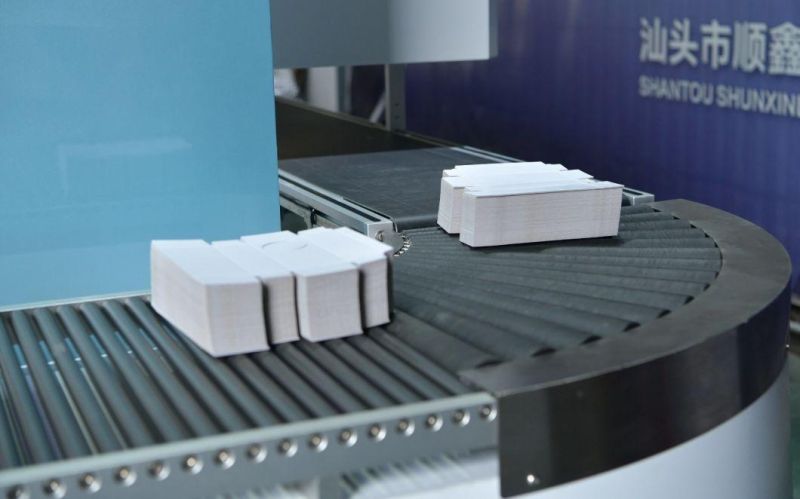

Conveyor and 90 Degree Corner90°corner conveyor belt to transport the product to the front of the machine to reduce labor costs,facilitate product placement.
Operation SystemMan-machine interface and PLC,programmable composition,time-saving transfer machine.
Waste Discharge ChannelThe scraps of paper fall into the waste discharge channel during the stripping process, keeping the machine clean and avoid paper scraps damaging the product and machine during operation.
Infrared SensorEquipped with infrared sensor, the machine will automatically stop when something enter the pick-up area, to avoid worker injury and machine damage.
Service
Sinhosun give our heartfelt thanks for your choosing of our products, service is our core. Our "lifetime worry-free service" covering the whole life cycle of equipment from service efficiency, service speed, maintenance cost and quality standard, and realize a customer-oriented value chain.
Pre-sale
According to your requirements and the providing box sample specification , our sale person will provide professional technical consultation services, and develop relevant solutions, and providing the performance and characteristics of products, etc.. In the early stage, sale person will communicate with you, ensure the models and specification of the equipment. Also we can custom machine for your special requirements, providing you a satisfactory reasonable production line.
After-sales
1. Establish one machine and one record management system
Our company implements the whole-process tracking management system from the factory to the useful lifespan of the products. Archiving management including the product name, specification model, factory number, date and user information , also including product acceptance registration, product assembly, the factory state, installation, customer situation, training, warranty and maintenance period of technology, quality records, and product transfer track records, etc, to ensure the quality security work of each sold equipment .
2. One-year warranty and lifetime service
From the day of equipment acceptance, we will provide free parts replacement services to you during warrant period, the freight of parts will be borne by buyer.
After one-year warranty, if your equipment failure, we will provide technical assistance, and provide you with paid maintenance services, including fault maintenance, replacement of the original factory parts.
Paper-Driving1.Cross- tropsch paper sets off headers immobile ; cross- tropsch products from paper-driving, avoid friction damage to the product;2.Adopt the imported high precision ball screw and linear guide drive, avoiding the integrating error and positional error when machine is working.
Double HeadThe double heads can realize the stripping of the lock bottom boxes,self-locking boxes,special-shapes.Module StrippingModular stripping instead of traditional thimble stripping, easy to install, reduce set up time less than 20 minutes.ManipulatorAutomatic robot dispensing,controlled by the reversible gear motors,pneumatic clamp the,material,finished products to the conveyor belt,improve transport efficiency,reduce labor costs,and improve productivity.Conveyor and 90 Degree Corner90°corner conveyor belt to transport the product to the front of the machine to reduce labor costs,facilitate product placement.Operation SystemMan-machine interface and PLC,programmable composition,time-saving transfer machine.Waste Discharge ChannelThe scraps of paper fall into the waste discharge channel during the stripping process, keeping the machine clean and avoid paper scraps damaging the product and machine during operation.Infrared SensorEquipped with infrared sensor, the machine will automatically stop when something enter the pick-up area, to avoid worker injury and machine damage.ServiceSinhosun give our heartfelt thanks for your choosing of our products, service is our core. Our "lifetime worry-free service" covering the whole life cycle of equipment from service efficiency, service speed, maintenance cost and quality standard, and realize a customer-oriented value chain.
Pre-sale
According to your requirements and the providing box sample specification , our sale person will provide professional technical consultation services, and develop relevant solutions, and providing the performance and characteristics of products, etc.. In the early stage, sale person will communicate with you, ensure the models and specification of the equipment. Also we can custom machine for your special requirements, providing you a satisfactory reasonable production line.
After-sales
1. Establish one machine and one record management system
Our company implements the whole-process tracking management system from the factory to the useful lifespan of the products. Archiving management including the product name, specification model, factory number, date and user information , also including product acceptance registration, product assembly, the factory state, installation, customer situation, training, warranty and maintenance period of technology, quality records, and product transfer track records, etc, to ensure the quality security work of each sold equipment .
2. One-year warranty and lifetime service
From the day of equipment acceptance, we will provide free parts replacement services to you during warrant period, the freight of parts will be borne by buyer.
After one-year warranty, if your equipment failure, we will provide technical assistance, and provide you with paid maintenance services, including fault maintenance, replacement of the original factory parts.
