Post-Press Equipment

Roll to Roll Filling Paper Bubble Kraft Paper Embossing Machine

Wenzhou Snda Machinery Co., Ltd.
  • Type:Automatic
  • Driven Type:Electric
  • Computerized:Computerized
  • Automatic Grade:Automatic
  • Application:Paper
  • Voltage:1,2,3 Phase, 220V,380V, 50,60 Hz

Base Info

  • Model NO.:800
  • Power:6
  • Weight:1200kgs
  • Certification:CE
  • Max.Width of Material:800mm
  • Max.Diameter of Roll:1200mm
  • Transport Package:Wooden Box
  • Specification:1200*1500*1400mm
  • Trademark:SNDA, OEM
  • Origin:Wenzhou, China
  • HS Code:8441100000
  • Production Capacity:30 Sets Per Month

Description

Basic Info.

Model NO. 800 Power 6 Weight 1200kgs Certification CE Max.Width of Material 800mm Max.Diameter of Roll 1200mm Transport Package Wooden Box Specification 1200*1500*1400mm Trademark SNDA, OEM Origin Wenzhou, China HS Code 8441100000 Production Capacity 30 Sets Per Month

Product Description

Machine features

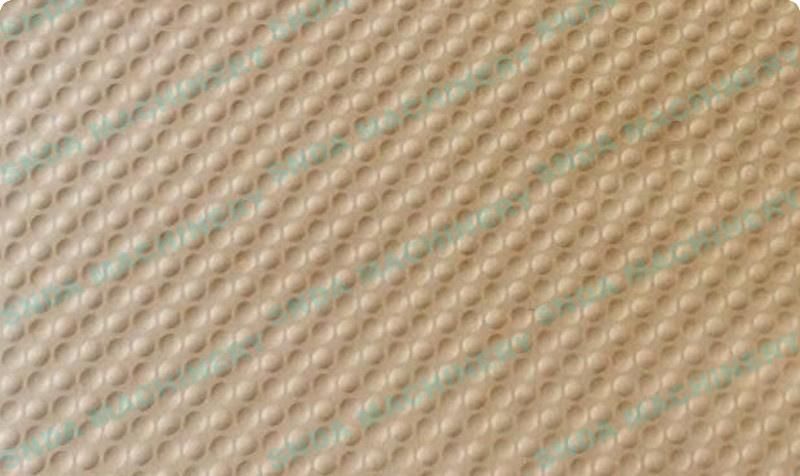

This is our newest design kraft paper embossing machine in order to make the kraft paper with embossing bubble,and this type kraft paper is widely used in e-commerce packing industry.
  1. Max paper roll feeding width 800mm
  2. Module roller specifications: Φ160(up and down modules)
  3. Embossing form: vertical upper and lower concave-convex rollers for pressing
  4. Roller pattern: semi-circular ball pattern, wave pattern, three-dimensional hexagon, four-pointed star, etc. Various patterns can also be customized according to your requirements.
  5. Pressure adjustment: screw pressurization or reducer pressurization
  6. Frequency conversion speed regulation: 0-50m/min
  7. Suitable for: paper(Min. 60gsm)
  8. Unwinding diameter: max. 1200mm(500kgs)
  9. Rewinding diameter;max. 1000mm(300kgs)
  10. Machine dimension:1500x1200x1400mm
  11. Machine weight 1200kgs
