Post-Press Equipment

Woven Label Machine Price for Ribbon Label Cutting (WL-103B)

Suzhou Crown Electronic Technology Co., Ltd.
  • Driven Type:Electric
  • Type:Industrial Cutter

Base Info

  • Model NO.:WL-103B
  • Blade Material:Metal
  • Computerized:Computerized
  • Available Tape Width:5~100mm
  • Available Cutting Length:5~9999mm
  • Tape Cutting Speed:300PCS,Min
  • Cutting Tolerance:0.5mm
  • Cutting Width:1-95mm
  • Transport Package:Wooden Case
  • Specification:Small size
  • Trademark:Crown
  • Origin:China
  • HS Code:8451500000
  • Production Capacity:500PCS,Month

Description

Basic Info.

Model NO. WL-103B Blade Material Metal Computerized Computerized Available Tape Width 5~100mm Available Cutting Length 5~9999mm Tape Cutting Speed 300PCS/Min Cutting Tolerance 0.5mm Cutting Width 1-95mm Transport Package Wooden Case Specification Small size Trademark Crown Origin China HS Code 8451500000 Production Capacity 500PCS/Month

Product Description

WL-103B  high speed Automatic Satin label cutting stacking machine

Product Application

This machine applies to the cutting materials of fabric tape brand, woven lable,color riband, textile braid, fabric tape, nylon tape, slide fastener,safety belt,magic stick, kitbag belt, elastic, label. Application:handbag, luggage, garment, electron, shoemaking, gift etc
1This belt/webbing cutting machine is suitable for cutting hot cut belt, textile belt, webbing, nylon belt, seat belt, backpack belt, elastic band, threaded belt, etc.
2High speed: it can cut 100 to 120 pieces per minute (50mm length as an example)
3Cutting shape: rectangle and quadrangle (customizable)
4High precision: each cut is monitored by a stepper motor to ensure high accuracy for each operation.
5The cut surface is flat: the hot knife can heat the cut surface of colored ribbons and light textile tapes at high temperature, and the seals are smooth and free from burrs.
6The blade is made of imported high quality steel and has a long service life.

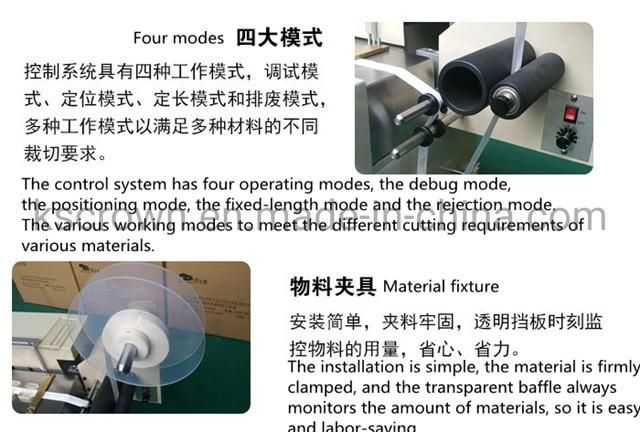

7Automatic operation: just set the cut length and quantity you need, and the machine will do the rest automatically.
Automatic pause: once the material runs out, it will automatically stop working. The alarm automatically alarms.
Memory function: before the switch is turned off, the cut-off length, quantity, and cut-off speed will be automatically stored.
File Storage: 9 files can be stored for easy retrieval at any time, reducing setup time.

Specification:


ModelWL-103   WL-103A WL-103B
TypeComputer typeComputer typeComputer type (with auto stacking function)
Power/output220V/1.5KW220V/1.5KW220V/1.5KW
Weight80kgs80kgs92kg
Dimension78*60*73cm78*60*73cm107*57*75cm
Cutting length1-90cm1-99cm1-99cm
Cutting width1-12.5cm1-12.5cm1-12.5cm
Cutting speed200pcs/min600pcs/min300pcs/min

Woven Label Machine Price for Ribbon Label Cutting (WL-103B)Woven Label Machine Price for Ribbon Label Cutting (WL-103B)
Woven Label Machine Price for Ribbon Label Cutting (WL-103B)




Woven Label Machine Price for Ribbon Label Cutting (WL-103B)
Woven Label Machine Price for Ribbon Label Cutting (WL-103B)


Related products
Woven Label Machine Price for Ribbon Label Cutting (WL-103B)
Woven Label Machine Price for Ribbon Label Cutting (WL-103B)

Application

Available Materials:Widely used to cut kinds of woven belt, nylon buckles, lining, fabric tape without heat seal,plastic zipper, metal zipper, plastic lace,PVC tube leather, aluminum platinum, PS material and so on.We supply kinds of special blade,then you can get different shapes of cutting edge.Hook & Loop,nylon/fabric tapes,plastic/metal zippers,leather,aluminum platinum,PVC tubes,PS material
Woven Label Machine Price for Ribbon Label Cutting (WL-103B)
Woven Label Machine Price for Ribbon Label Cutting (WL-103B)



Company info:

Woven Label Machine Price for Ribbon Label Cutting (WL-103B)

Our Services

1, One year guarantee for the whole machine except blade and belt.

2, 24 hours technical support by email.

3, User-friendly English software and user manual.

-Purchase guidance

If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models

to you.

---After Sale Service

Don't worry, we are here to help. Crown provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!

--- Technical Support

In some cases, professional technical support will be needed, such as parameter meter set-up

 for difficult-to process wires. Crown engineers are here for your assistance.

---Others

Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers.

Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
