Customized Adhesive Tape Industrial Film Rotary Die Cutting Machine

Chuan Zhen Precision Machinery (Suzhou) Co., Ltd.
  • After-sales Service:Staff Training and Installation Guide
  • Warranty:One Year
  • Species:Rotary Die-Cutting Machine
  • Imprinting Type:Rotary
  • Placing Form of Template:Horizontal
  • Die Cutting Tool:Metal Mold

Base Info

  • Model NO.:MQ-R-10
  • Computerized:Computerized
  • Automatic Grade:Automatic
  • Application:Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials
  • Machine Type:Rotary Die Cutting Machine
  • Material Type:Label Film Tape
  • PLC Control:Yes
  • Rectification Device:Yes
  • Station:Ten Stations or Customized
  • Product Type:Roll to Roll
  • Feeding Width:Standard : 250mm
  • Drive Type:Electric
  • Driven Motor:Servo Motor
  • Transport Package:Wooden Case
  • Specification:4620*1300*2600MM
  • Trademark:Chuanri
  • Origin:China
  • HS Code:8401100000
  • Production Capacity:200 Sets,Month

Description

Model

MQ-R-10

Max feeding width

250mm

Max cutting speed

45m/min

Material thickness

0.05-0.75mm

Material sort

Roll material

Circual pitch

3.175mm

Max tooth number

110

Min tooth number

55

Diameter of retractable reel

76mm

Maximum material diameter

500mm

Winding draft tension

25N

Size

4620*1300*2600mm

Weight

5.5T

Power

380v 3phrases

Compressed air supply

0.4-0.7P

Cutterblock number

10*2.5kw


Our standard rotary die cutting machine - ten stations,  we can customize the process and stations according to your request.

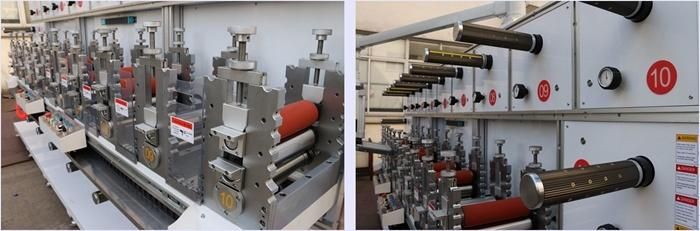

As below, its the ten stations rotary die cutting machine.

Customized Adhesive Tape Industrial Film Rotary Die Cutting Machine
Customized Adhesive Tape Industrial Film Rotary Die Cutting Machine

Exhibition
Customized Adhesive Tape Industrial Film Rotary Die Cutting Machine
Customized Adhesive Tape Industrial Film Rotary Die Cutting Machine
