• Model NO.：FC-500VC
• Computerized：Computerized
• Automatic Grade：Automatic
• Application：Paper Packaging Materials, Stickers Products, Heat Insulation Material
• Effective Cutting Area：495mm*685mm
• Cutting Tool Type：Cutter Blade,Calibration Tool,Creasing Tool
• Max. Cutting Speed：700mm,S
• Max. Down Force：600g
• Operating Screen：4.3-Inch Touch LCD
• Media Hold-Down Method：Vacuum Suction
• Configurations：Digital Servo System, Flatbed
• Mountable Media (Y Axisdi Rection}：640mm
• Minimum Character Size：5mm Square
• Programmable Resolution：HP-Gl: 0.025rnm
• Repeatability：0.1mm
• Memory：32MB
• Power Supply：AC100-240vc, 50,60 Hz
• Packaging Dimensions：115X110X61cm (Machine) 47X43X37cm(Vacuum Pump)
• Number of Tools：3 Tools
• Transport Package：Carton, Wood Package
• Specification：CE, ROTHS, ISO9001, ROTHS
• Trademark：VICUT
• Origin：Hefei, China
• HS Code：8441100000
• Production Capacity：500sets,Year

Basic Info.

Model NO. FC-500VC Computerized Computerized Automatic Grade Automatic Application Paper Packaging Materials, Stickers Products, Heat Insulation Material Effective Cutting Area 495mm*685mm Cutting Tool Type Cutter Blade/Calibration Tool/Creasing Tool Max. Cutting Speed 700mm/S Max. Down Force 600g Operating Screen 4.3-Inch Touch LCD Media Hold-Down Method Vacuum Suction Configurations Digital Servo System, Flatbed Mountable Media (Y Axisdi Rection} 640mm Minimum Character Size 5mm Square Programmable Resolution HP-Gl: 0.025rnm Repeatability 0.1mm Memory 32MB Power Supply AC100-240vc, 50/60 Hz Packaging Dimensions 115X110X61cm (Machine) 47X43X37cm(Vacuum Pump) Number of Tools 3 Tools Transport Package Carton, Wood Package Specification CE, ROTHS, ISO9001, ROTHS Trademark VICUT Origin Hefei, China HS Code 8441100000 Production Capacity 500sets/Year

Product Description

The VICUT Vulcan series flatbed cutter is ideal for small and medium-sized production and samples of packaging, swing tickets, cards and labels. Processing materials include paper, cardboard, synthetics, films and kinds of labels, up to 600gsm.

Using advanced digital contour cutting technology,no cutting dies required, Vulcan series flatbed cutter plotter is able to produce the sheets to any shapes, instantly and directly from the desktop. It can handle full cutting, half cutting, creasing, perforating and plotting.

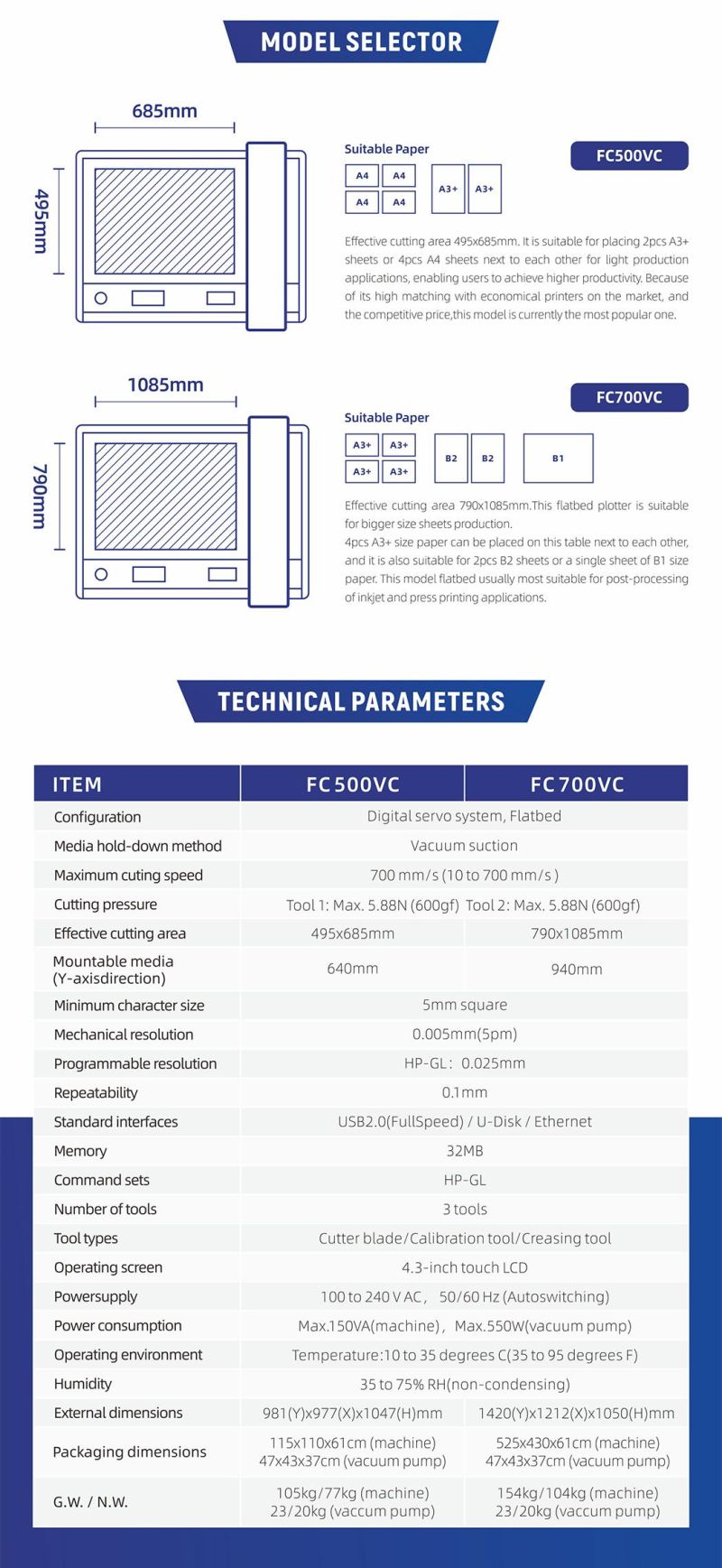

Two models are available, FC500VC flatbed plotter suits for placing 2pcs SRA3 sheets while FC700VC flatbed cutting plotter allows for 2pcs B2 sheets or one B1 sheet. Users can choose suitable size reasonably according to the size of processing materials, production capacity, floor space, project budget, etc.Application FieldPrototype and light production, DIY paper crafts, tags, on-demand packaging and sheet card cutting system - also suitable for sheet labels.

Process Material
Cardboard, craft paper, fibrous cardboard, eva rubber, PVC, sandblast, vinyl, sticker, magnetic sticker,PET, TPU, reflective film and thin film etc.
