• Model NO.：Jps-500tq
• Computerized：Computerized
• Model：Jps -500tq
• Voltage：220V,380V
• N.W.：280kg
• Gw.：300kg
• Cutting Length：0.1-9999.9mm
• Cutting Width：1-500mm
• Measurement：1100X1200X1450mm
• Certificated：CE
• Manufacturing Experience：30 Years
• Guarrantee：12 Months
• Transport Package：Export Wooden Case
• Specification：CE
• Trademark：JPS
• Origin：Kunshan, Jiangsu
• HS Code：84515000
• Production Capacity：1000sets,Month

ModelJPS-500TQVoltage220V/380VPower1.5HPN.W.280kgG.W.300kgCutting Length0.1~9999.9mmCutting Width1~360mmMeasurement110x1200x1450mm
Application: Sizing cutting and laminating for silicon rubber, conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, release paper, protective film, copper /aluminum foil and all kinds of adhesive tapes.

Feature: This machine employs man-machine interface + PLC system to set feeding material length, with lamination function.Cutting and laminating can be finished at one time. To save time and material, It is ergonomicallydesigned which is easy operation.

Main functions of belt cutting machine:

1. Feed material and return material by pressing the button on touch screen
2. Preset total cutting quantity
3. Preset cutting length
4. Preset cutting speed
5. Preset cut quantity each time ( applied for hot cutting)
6. Flash cutting quantity finished
7. Half cut-off with multi-cut
8. Full cut-off with one-cut
9. Five different cutting length can be set
10. Different cutting quantity and circulation time can be set
11. Return to ZERO

After-service:
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory

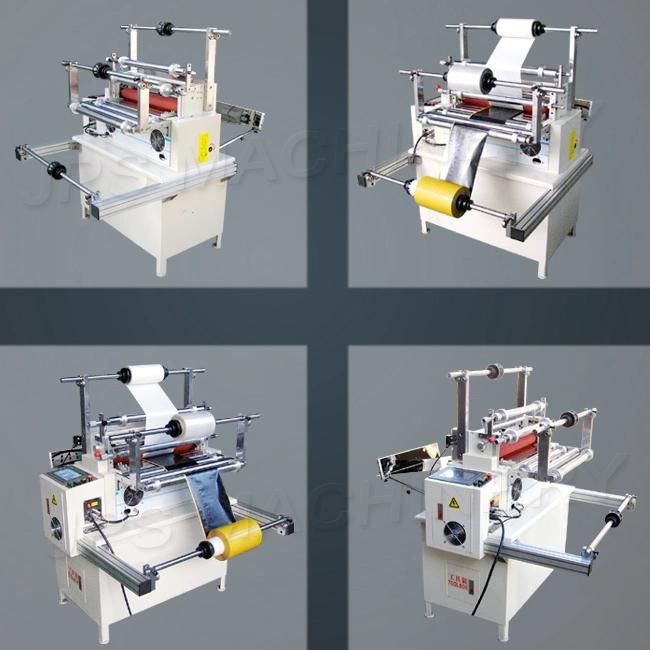

JPS-500TQ  Adehsive Tape and Foam laminating Horizontal Cutting Machine With Three-layer Lamination ( Version )






JPS-500TQ  Adehsive Tape and Foam laminating Horizontal Cutting Machine With Three-layer Lamination ( Configuration )






JPS-500TQ  Adehsive Tape and Foam laminating Horizontal Cutting Machine With Three-layer Lamination ( Factory Show )






JPS-500TQ  Adehsive Tape and Foam laminating Horizontal Cutting Machine With Three-layer Lamination ( Material Applied )






JPS-500TQ  Adehsive Tape and Foam laminating Horizontal Cutting Machine With Three-layer Lamination ( Cutting Machine Series )






JPS-500TQ  Adehsive Tape and Foam laminating Horizontal Cutting Machine With Three-layer Lamination ( Customer Show )
