• Model NO.：CQT-500
• Computerized：Computerized
• Control System：Servo Motor
• Characteristic：Final Products with Gaps
• Advantage：Save Material and Save Labors
• Certificate：CE & ISO
• Blade：Can Be Blade or Simple Die
• Experience：Over 30 Years
• Transport Package：Wooden Box
• Trademark：CHUANRI
• Origin：China
• HS Code：844110000
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. CQT-500 Computerized Computerized Control System Servo Motor Characteristic Final Products with Gaps Advantage Save Material and Save Labors Certificate CE & ISO Blade Can Be Blade or Simple Die Experience Over 30 Years Transport Package Wooden Box Trademark CHUANRI Origin China HS Code 844110000 Production Capacity 300 Sets/Month

Product Description

Full Automatic Double Servo Motors Double Synchronization Gap Cutting Machine

Function And Characteristic:
CQT-500 Gap cutting machine Double servo motors, double synchronization, the dragging precision can be +/-0.1mm%, max. feeding width is 520mm, valid width is 500mm, it is gap cutting, in this case, can avoid waste material. Machine is only or cut straight lines.

Scope of Application:
For long strips dobule side adhesive tapes, it can avoid waste material, no need to rewind the wastage. Once forming.

Technical Data:

Model	CQT-500
Max Feeding Width (mm)	500
Main Engineer Power (kw)	0.75
Cutting Speed (cuts/min)	130
Size (m)	L1.4*W1.4*H1.3
Weight (t)	0.5
Cutting Precision (mm)	± 0.10
Voltage	220v 50hz
Total power (kw)	3.5

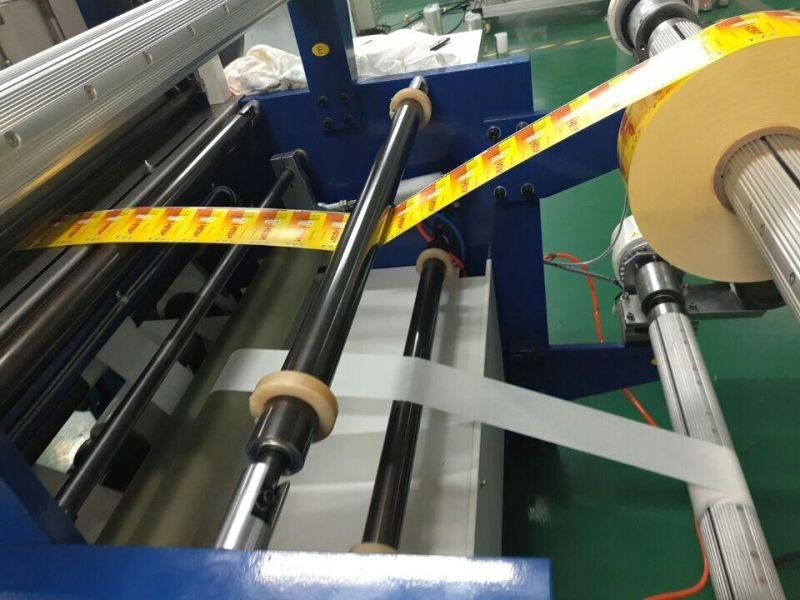

Before cutting, it is continuous tape, then we remove original liiner at the bottom shaft.


And unwind a new liner, and cut the tape onto new liner, for the final product, between each 2 tapes, there is a gap. Such gap can avoid tape stick to each other again.


Customized machine with top rewind shafts.
Some customers use this machine to die cut the finger lift tape.
The top shafts are for rewind the trim wastage.


This die is used for make finger lift and trim.


Our CNC Workshop, all the mechanical parts are produced by ourselves.


Order from one customer. And this isn't the first time they bought our machines.

We are the company, who has our own designing team, Most important thing is all our people concern about the qulity of the machines.
Stable cutting pressure, convenient for operating, faithful to all the customers.
If machine isn't suitable for customers' using, we will tell them the truth.

All the machines we sold out, must be able to help customer to earn profits for the customer.
Otherwise, we would like not sell the machine.

But if customers' products belong to our industry, we will try our best to persuade customer consider about our machine.
Just because machines are really with good quality and better structure.
We hope all customers have good quality machine to use.
