Saga FC9901220 Kiss Cut Digital Bluetooth After Printing Paper Cutter Full Touch Screen Flatbed Die Cutter

Hefei Saga Computer Numerical Control Co., Ltd.
  • After-sales Service:Lifetime Service
  • Warranty:1 Year
  • Species:Die Cutting and Creasing Machine
  • Imprinting Type:Rotary Platen
  • Placing Form of Template:Horizontal
  • Die Cutting Tool:Steel Blade

Base Info

  • Model NO.:FC9901220
  • Computerized:Computerized
  • Automatic Grade:Automatic
  • Application:Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials
  • Max Cutting Speed:700mm,S
  • Max Cutting Force:1500g
  • Blade Types:Blade, Creasing Tool and Pen
  • Media Hold Method:Vacuum Suction
  • Max Arms Contour Cutting Area:690mm*920mm
  • Package Dimensions:1954mm*1656mm*620mm
  • Gw:275kg
  • Maximum Cutting Size:700mm*990mm
  • Positioning Sensor Type:CCD Digital Camera
  • Working Voltage:110-240V 50,60Hz
  • Cutting Control System:Digital Servo System
  • Power:1.3kw
  • Actual Dimensions:1886.5mm×1528mm×1000mm
  • Interface:USB,Network Cable
  • Certification:CE, SGS, RoHS, Is09001
  • Transport Package:Wooden Package
  • Specification:1886.5mm*1528mm*1000mm
  • Trademark:saga
  • Origin:Hefei China
  • HS Code:84411000
  • Production Capacity:10000PCS

Description

Overview Product Description

Detailed PhotosProduct ParametersMachine performanceMedia hold methodVacuum suctionPositioning sensor typeDigital camera(CCD)Maximum cutting size1000mm×1290mmMaximum ARMS Contour Cutting Size990mm×1220mmScanning speed5-10sSoftware and compatibilityPower and working envionment requirementsVoltage and current100VAC-120VAC.50/60Hz,Maximum current 6.8A
200VAC-240VAC,50/60Hz,Maximum current 3.4APower350WVoltage and current(Vacuum Pump)110VAC, 50Hz, Rated current 12.4A, 60Hz, Rated current 17.2A
220VAC, 50Hz, Rated current  6.2A,60Hz, Rated current 8.6APower(Vacuum Pump)50Hz, 1.1KW;60Hz,1.3KWStandIncludedOperation environmentTemperature+5ºC to +35ºC(Fahrenheit 41-95),Humility 30%-75%(Non-condensing)Dimensions and weightsActual dimensionsMore about us

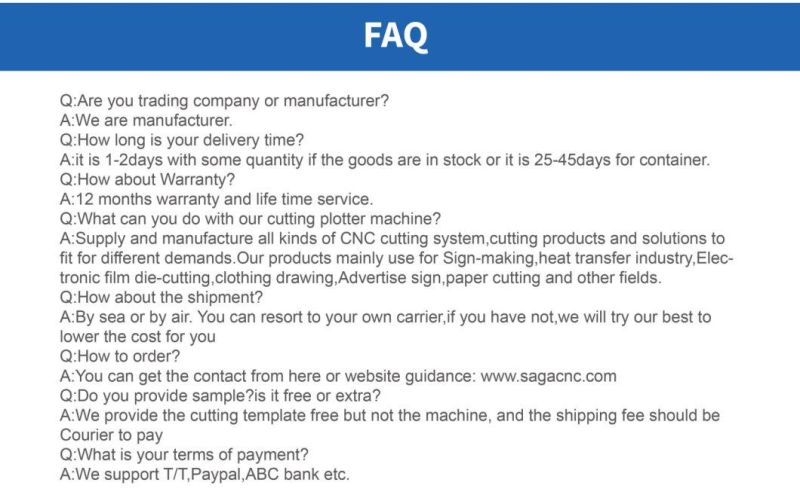

FAQSaga FC9901220 Kiss Cut Digital Bluetooth After Printing Paper Cutter Full Touch Screen Flatbed Die CutterFactory sceneSaga FC9901220 Kiss Cut Digital Bluetooth After Printing Paper Cutter Full Touch Screen Flatbed Die CutterSaga FC9901220 Kiss Cut Digital Bluetooth After Printing Paper Cutter Full Touch Screen Flatbed Die CutterSaga FC9901220 Kiss Cut Digital Bluetooth After Printing Paper Cutter Full Touch Screen Flatbed Die Cutter
