Multi-Layer Sticker Through Cut 420 Die Cutting Machine

Chuan Zhen Precision Machinery (Suzhou) Co., Ltd.
  • After-sales Service：Staff Training and Installation Guide
  • Warranty：12 Months
  • Species：Die Cutting and Creasing Machine
  • Imprinting Type：Platen
  • Placing Form of Template：Horizontal
  • Die Cutting Tool：Plastic Dies or Wooden Dies

Base Info

  • Model NO.：MQ-420BIV
  • Computerized：Computerized
  • Automatic Grade：Automatic
  • Application：Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials
  • Driven Type：Electric
  • Driven System：Servo Motor
  • Condition：New
  • Experience：Over 30 Years
  • Certification：CE ISO
  • Transport Package：Seaworthy Wooden Case
  • Specification：1650*1450*2100mm
  • Trademark：Chuanzhen
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：200 Sets,Month

Description

Basic Info.

Model NO. MQ-420BIV Computerized Computerized Automatic Grade Automatic Application Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials Driven Type Electric Driven System Servo Motor Condition New Experience Over 30 Years Certification CE ISO Transport Package Seaworthy Wooden Case Specification 1650*1450*2100mm Trademark Chuanzhen Origin China HS Code 8477800000 Production Capacity 200 Sets/Month

Product Description

Multi-layer Sticker Through Cut 420 Die Cutting Machine

Functional characteristics:

This machine enjoys multi-layer sticking, partial laminating, multi-strip tape sticking, etc. The imported motor is used for the receiving (separating) bottom sheet of sticking film, Feeding-filming( enjoying multi-layer sticking and partial sticking)-die cutting- waste draining- slitting- rolling, all of them are completed by the computer control by one turn. Materials can be fed with a conveyer belt, and die-cut to cut fully.

Scope applicable:

Various insulating materials such as electronic shield materials, PVC, film, Mylar, cooper foil, aluminum foil, foam, etc.

Multi-Layer Sticker Through Cut 420 Die Cutting MachineMulti-Layer Sticker Through Cut 420 Die Cutting MachineMulti-Layer Sticker Through Cut 420 Die Cutting MachineMulti-Layer Sticker Through Cut 420 Die Cutting Machine

Main Parameters:

Model420B IV
Max Feeding Width   ( mm )420
Cutting Area   ( mm )400*400
Cutting Speed   ( T/M )30-150
Position Accuracy   ( mm )± 0.10
Main Engine Power   ( KW )3
Size   ( mm )2950*1450*1700
Voltage   ( V )380

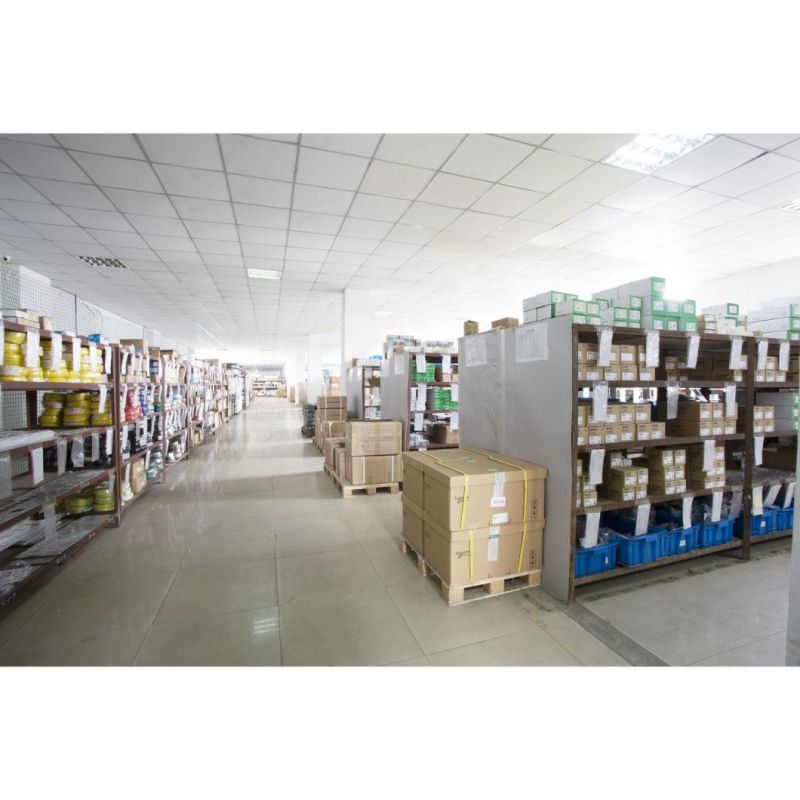

Factory:
