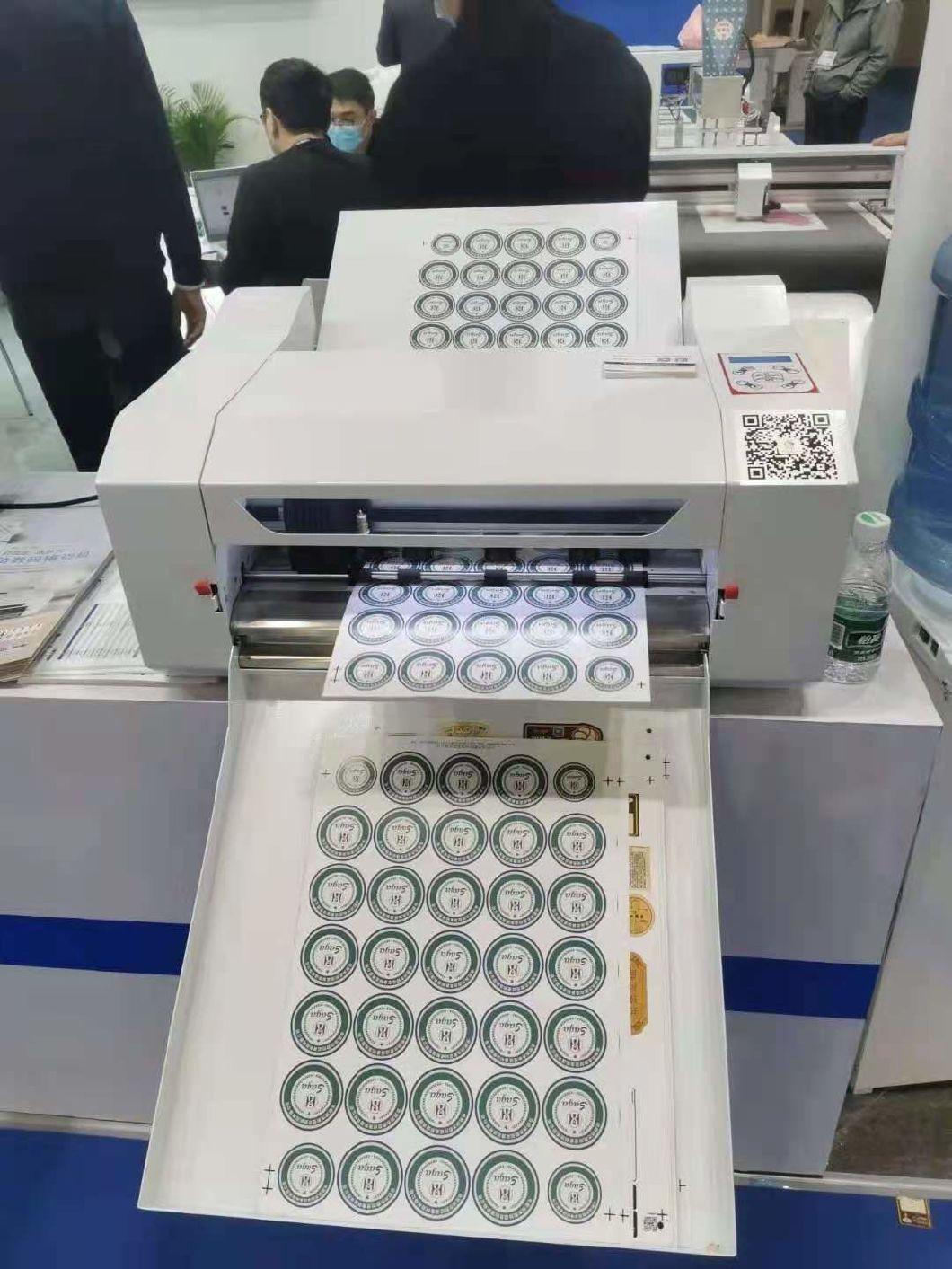

Automatic Adsorbed Digital Feeding Die Sheet Cutter Plotter for Cutting Stickers and Cardstocks (SG-SC1909)

Hefei Saga Computer Numerical Control Co., Ltd.
  • After-sales Service：Lifetime Service
  • Warranty：1 Year
  • Species：Die Cutting and Creasing Machine
  • Imprinting Type：Rotary Platen
  • Placing Form of Template：Horizontal
  • Die Cutting Tool：Steel Blade

Base Info

  • Model NO.：SG-SC1909
  • Computerized：Computerized
  • Automatic Grade：Automatic
  • Application：Stickers Products, Heat Insulation Material, Insulating Materials, Cardboard
  • Max Cutting Speed：300mm,S
  • Max Cutting Force：500g
  • Maximum Sheet Size：A3+,483*330mm
  • Maximum Cutting Size：473mm*325mm
  • Maximum Paper Weight：350g
  • Cutting Control System：Stepper Motor
  • Positioning Sensor Type：Optical Sensor
  • Gw/Nw：33.8,52.8kg
  • Package Dimensions：820mm*680mm*550mm
  • Cutting Media Types：Self-Adhesive Sticker, Vinyl, Wrap etc.
  • Certification：CE, SGS, RoHS, Is09001
  • Software and Compatibility：Corel Draw,PC Only
  • Actual Dimensions：685mm*500mm*320mm
  • Mechanical Resolution：0.009mm
  • Power：150W
  • Transport Package：Wooden Package
  • Specification：685mm*500mm*320mm
  • Trademark：saga
  • Origin：Hefei China
  • HS Code：84411000
  • Production Capacity：10000PCS

Description

Power and working environment requirementsVoltages100V~240V 50/60HzPower 150WOperation environmentTemperature +5ºC to +35ºC(Fahreheit 41-95),Humility 30%-75%(Non-condensing)

This parameter is subject to change without prior notice. The company reserves the right of final interpretation
