Asynchronous Gap Die Cutting Machine with Trepanning Pin System

Chuan Zhen Precision Machinery (Suzhou) Co., Ltd.
  • After-sales Service:Staff Training and Installation Guide
  • Warranty:One Year
  • Species:Die Cutting and Creasing Machine
  • Imprinting Type:Platen
  • Placing Form of Template:Horizontal
  • Die Cutting Tool:Wooden Dies and Plastic Dies

Base Info

  • Model NO.:MQ-320H
  • Computerized:Computerized
  • Automatic Grade:Automatic
  • Application:Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials
  • Die Cutting Speed:300 Strokes,Min
  • Net Weight:2000kg
  • Feeding Width:320mm
  • Gross Weight:2200kg
  • Die Cutting Area:300*300mm
  • Die Cutting Accuracy:+,-0.1mm
  • Power:380V, 50Hz
  • Transport Package:Standard Export Wooden Case
  • Specification:1650*1450*2100mm
  • Trademark:CHUANRI
  • Origin:China
  • HS Code:8477800000
  • Production Capacity:300 Sets,Month

Description

Basic Info.

Model NO. MQ-320H Computerized Computerized Automatic Grade Automatic Application Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials Die Cutting Speed 300 Strokes/Min Net Weight 2000kg Feeding Width 320mm Gross Weight 2200kg Die Cutting Area 300*300mm Die Cutting Accuracy +/-0.1mm Power 380V, 50Hz Transport Package Standard Export Wooden Case Specification 1650*1450*2100mm Trademark CHUANRI Origin China HS Code 8477800000 Production Capacity 300 Sets/Month

Product Description

Asynchronous Gap Die Cutting Machine with Trepanning Pin System


Functional characteristics:


1. Special design of trepan pin for position fixing
2. Digital control system, we can do second or more die cut
3. Metal die and normal die are workable
4. Auto oil control system, while run out of oil, machine will alarm
5. Adjust the die cut pressure by chance values in the touch screen. And after adjust, we can lock the structure of the board and keep stable die cut pressure.
6. Cutting blade is fixed by blade holder.
7. The cutting station can be micro adjust.


Scope application:

To produce adhesive tape for mobile phone screen frame, roll to sheet cut work together with asynchronous transfer laminate, in this case, we can avoid cutting marks in the inner side of the frame. Die cut station is used for cut inner frame, reduce the working process, and avoid cutting marks. For PET double side adhesive tape, the min. joint gap is 0.03mm, for foam tape, the min. joint gap is 0.1mm.

Asynchronous Gap Die Cutting Machine with Trepanning Pin SystemAsynchronous Gap Die Cutting Machine with Trepanning Pin SystemAsynchronous Gap Die Cutting Machine with Trepanning Pin System

Main Parameters:

ModelMQ-320H
Max. size of board (mm)320*320
Max feeding width  (mm)320
Max. die cut area (mm)W300*L300
Die cut Speed (cuts/min)≤200
Precision (mm)± 0.10
Main Power (kw)3
Dimension (mm)L2500*W1550*H1900
Voltage(v)380
Total Power (kw)5.5
Weight (t)2.2

Asynchronous Gap Die Cutting Machine with Trepanning Pin System
Asynchronous Gap Die Cutting Machine with Trepanning Pin System
Asynchronous Gap Die Cutting Machine with Trepanning Pin System
Asynchronous Gap Die Cutting Machine with Trepanning Pin System
Asynchronous Gap Die Cutting Machine with Trepanning Pin System
Asynchronous Gap Die Cutting Machine with Trepanning Pin System

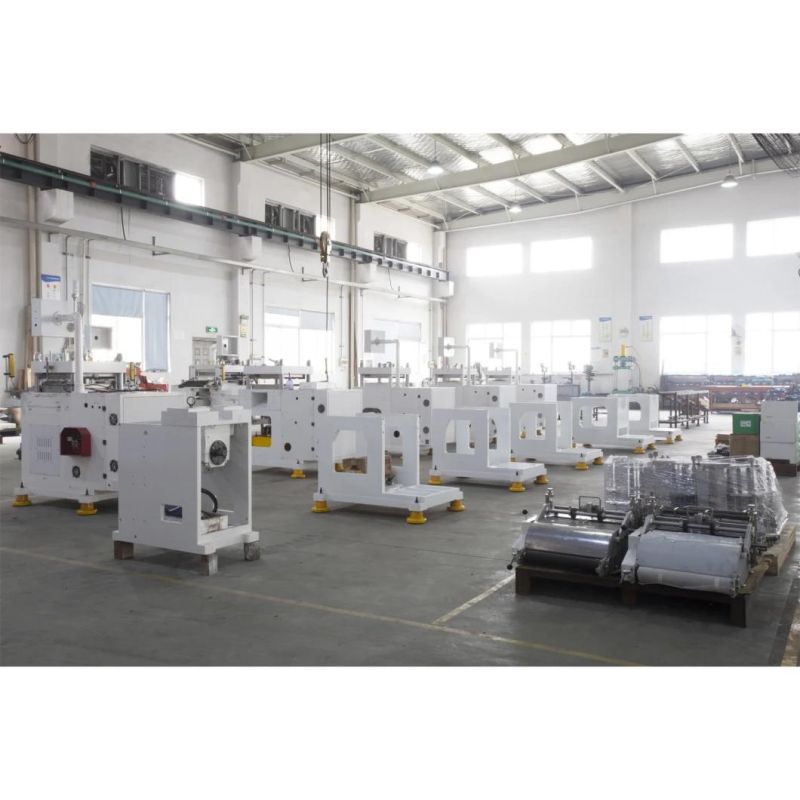

Factory:
