Post-Press Equipment

Tymc-750 Manual Hot Foil Cards Paper Label Machine

ZHEJIANG GUANGYA MACHINERY CO., LTD.
  • Classification:Continuous Stamping Machine
  • Plate Type:Letterpress
  • Color & Page:Mutil Color
  • Suitable Material:Paper
  • Automatic Grade:Semi-Automatic
  • Application:Leather Heat Transfer, Business Card, Plastic Flexible Packaging, Arts and Crafts, Electronic, Labels and Tags, Cap, Toy, Apparel

Base Info

  • Model NO.:TYMC-750
  • Usage:Label Printer, Paper Printer
  • Hot Stamping Pressure Factor:Hot Stamping Temperature
  • Decisive Factor:Pressure
  • Type:Heat Press Machine
  • Function:Die Cutting and Gilding
  • Transport Package:Wooden Case
  • Specification:1540mm*1660mm*1970mm
  • Trademark:Shiwei
  • Origin:China
  • HS Code:84439119
  • Production Capacity:20 Sets Per Month

Description

Basic Info.

Model NO. TYMC-750 Usage Label Printer, Paper Printer Hot Stamping Pressure Factor Hot Stamping Temperature Decisive Factor Pressure Type Heat Press Machine Function Die Cutting and Gilding Transport Package Wooden Case Specification 1540mm*1660mm*1970mm Trademark Shiwei Origin China HS Code 84439119 Production Capacity 20 Sets Per Month

Product Description

1.Product Description

Hot Stamping Foil Printing Machine
is a kind of special equipment used for thermo-printing and creasing various products, such as cardboard, leather and plastic etc.

It is suitable for thermo-printing various paper products with electrochemical aluminum and also used as a creasing and die cutting machine for mould cutting and creasing cardboard cases and boxes. Concave-convex thermo-printing of various high-grade and fine printed products can also be conducted on this machine for obtaining stereoscopic exquisite and beautiful packing and decorating products.

The machine is controlled by a chip microprocessor. with the foil-feeding rubber roller of electrochemical aluminum driven by the separately set length and leapfrog parameters to make the most effective using of electrochemical aluminum. The purpose of this model is to ensure that the system runs stably and reliably so that the machine can be maintained easily and simply.


Tymc-750 Manual Hot Foil Cards Paper Label Machine

                                                       TYMC-750 Factory real show
Basic specification
Max.effective plate area:750mm*520mm
Max.gilding size:750mm*520mm
Group of foil feeding roller:2
Max. length of foil feeding:520mm
Leapfogging Scope:0-99
Heating plate zones:4
Heating plate power:8kw
Total power:10.2kw
Main motor power:2.2kw, 6 pole
Working speed:28±2 sheets/min
Weight of machine:2300kg
Dimension:1540mm*1660mm*1970mm

Main Parts
Tymc-750 Manual Hot Foil Cards Paper Label Machine

Electric Box, Which is bought from Siemens, Panasonic and so on. Meet CE Certifiction

Tymc-750 Manual Hot Foil Cards Paper Label Machine

The hot plate divided into 4 zones, and each zone can be adjusted independently.
Fast heating, low-energy, constantly temperature control, real-time temperature display
which will ensure high product quality.


Tymc-750 Manual Hot Foil Cards Paper Label Machine
Main Motor usual is 380v,50hz. According to different country request,
it could be changed to suit customer country voltage and hertz request.

Tymc-750 Manual Hot Foil Cards Paper Label Machine

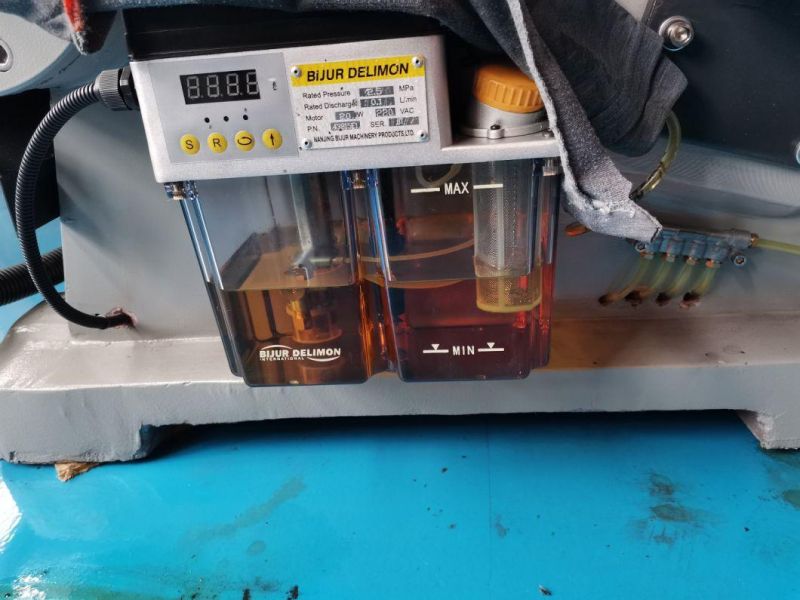

Fully Automatic Oil Pump, when oil pump run out of oil.
The machine will stop automatic to protect machine


2.Sample
Tymc-750 Manual Hot Foil Cards Paper Label Machine
3.CE Certification
Tymc-750 Manual Hot Foil Cards Paper Label Machine

4.Payment &packaging&shipping

      1) Payment:  TT, 30% as deposit,balance 70% before shipment.
      2) Packaging: Wooden case
      3)Shipping: by sea

Tymc-750 Manual Hot Foil Cards Paper Label Machine

5.Why choose us

Tymc-750 Manual Hot Foil Cards Paper Label Machine
6.FAQ

 1. Q: Are you a factory or trading company?

      A: We are a factory,manufacturer.

  2. Q: What certificate do you have?
      A: We have ISO9001 and CE certificate.

  3. Q: How dose your factory do regarding quality control?
      A: We have a special QC department in charge of product's quality.

  4. Q: How long is the warranty period?
      A: All of our products have one year warranty.

  5. Q: What's the main market of your company?
      A: we have customers all over the world.

  6. Q: What is your delivery time?
      A: Normally, It needs about 45 days. The exact time depends on production management.

  7. Q: Can we visit your machine operation in your factory?
      A: We have sample of machine in our workshop, you can visit our factory to test our service and quality of
           machine.

  8.Q: Where is your factory located? How can we visit there?
      A: Our factory located in Baihai New Zone,Pingyang County,Zhejiang province,China. You can by air to
           Wenzhou Airport and by High-speed rain to Ruian Station. We will arrange to pick up you.

          We are welcome all friends to visit us for future cooperation!

7.Company profile & Exhibiton
Zhejiang Guangya Machinery Co.,Ltd is a professional manufacturers of hot foil stamping and die cutting machine with long history.Since its establish we have always insisting on the policy of Achieved success by quality,Integrity is base,also pay attention to new product development and continual improvement.On designing machine, we adopt high and new technology from home and abroad.Our products is very popular in domestic market and already exported to over 70counteirs or region such as Europe,North America,Middle East and so on.

Tymc-750 Manual Hot Foil Cards Paper Label Machine
