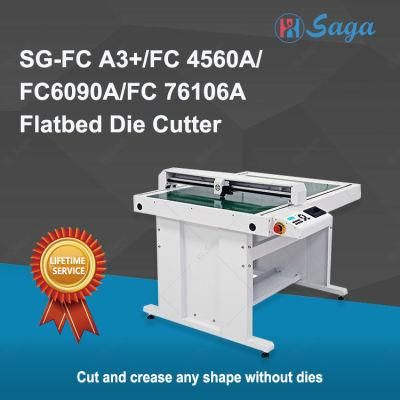

Saga FC9901220 Digital Flatbed Die Cutter Cutting Bluetooth Plotter for Package Proofing Cut and Crease

Hefei Saga Computer Numerical Control Co., Ltd.
  • After-sales Service：Lifetime Service
  • Warranty：1 Year
  • Species：Die Cutting and Creasing Machine
  • Imprinting Type：Rotary Platen
  • Placing Form of Template：Horizontal
  • Die Cutting Tool：Steel Blade

Base Info

  • Model NO.：FC9901220
  • Computerized：Computerized
  • Automatic Grade：Automatic
  • Application：Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials
  • Max Cutting Speed：700mm,S
  • Positioning Sensor Type：CCD Digital Camera
  • Cutting Control System：Digital Servo System
  • Maximum Cutting Size：700mm*990mm
  • Max Arms Contour Cutting Area：690mm*920mm
  • Media Hold Method：Vacuum Suction
  • Actual Dimensions：1886.5mm×1528mm×1000mm
  • Blade Types：Blade, Creasing Tool and Pen
  • Package Dimensions：1954mm*1656mm*620mm
  • Max Cutting Force：1500g
  • Gw：275kg
  • Working Voltage：110-240V 50,60Hz
  • Power：1.3kw
  • Interface：USB,Network Cable
  • Certification：CE, SGS, RoHS, Is09001
  • Transport Package：Wooden Package
  • Specification：1886.5mm*1528mm*1000mm
  • Trademark：saga
  • Origin：Hefei China
  • HS Code：84411000
  • Production Capacity：10000PCS

Description

Machine performanceMedia hold methodVacuum suctionPositioning sensor typeDigital camera(CCD)Maximum cutting size1000mm×1290mmMaximum ARMS Contour Cutting Size990mm×1220mmScanning speed5-10sSoftware and compatibilityPower and working envionment requirementsVoltage and current100VAC-120VAC.50/60Hz,Maximum current 6.8A
200VAC-240VAC,50/60Hz,Maximum current 3.4APower350WVoltage and current(Vacuum Pump)110VAC, 50Hz, Rated current 12.4A, 60Hz, Rated current 17.2A
220VAC, 50Hz, Rated current  6.2A,60Hz, Rated current 8.6APower(Vacuum Pump)50Hz, 1.1KW;60Hz,1.3KWStandIncludedOperation environmentTemperature+5ºC to +35ºC(Fahrenheit 41-95),Humility 30%-75%(Non-condensing)Dimensions and weightsActual dimensions

1886.5mm×1528mm×1000mm

Package dimensions1954mm*1656mm*620mmGW275kgSaga FC9901220 Digital Flatbed Die Cutter Cutting Bluetooth Plotter for Package Proofing Cut and CreaseSaga FC9901220 Digital Flatbed Die Cutter Cutting Bluetooth Plotter for Package Proofing Cut and CreaseSaga FC9901220 Digital Flatbed Die Cutter Cutting Bluetooth Plotter for Package Proofing Cut and CreaseSaga FC9901220 Digital Flatbed Die Cutter Cutting Bluetooth Plotter for Package Proofing Cut and Crease
