Post-Press Equipment

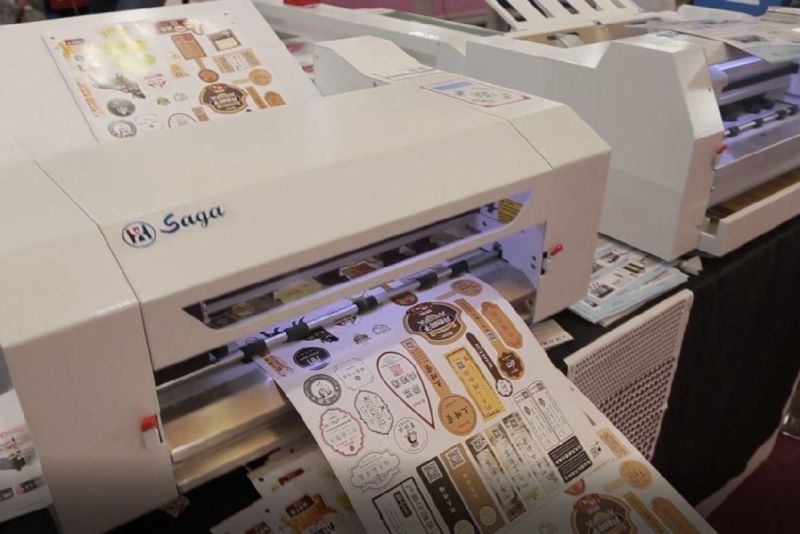

Economic High Fast Cutting Plotter Die Cutter

Hefei Saga Computer Numerical Control Co., Ltd.
  • After-sales Service:Lifetime Service
  • Warranty:1 Year
  • Species:Die Cutting and Creasing Machine
  • Imprinting Type:Rotary Platen
  • Placing Form of Template:Horizontal
  • Die Cutting Tool:Steel Blade

Base Info

  • Model NO.:SG-SC 1909
  • Computerized:Computerized
  • Automatic Grade:Automatic
  • Application:Stickers Products, Heat Insulation Material, Insulating Materials, Cardboard
  • Max Cutting Speed:300mm,S
  • Max Cutting Force:500g
  • Maximum Sheet Size:A3+,483*330mm
  • Cutting Media Types:Self-Adhesive Sticker, Vinyl, Wrap etc.
  • Maximum Cutting Size:473mm*325mm
  • Maximum Paper Weight:350g
  • Gw/Nw:33.8,52.8kg
  • Cutting Control System:Stepper Motor
  • Certification:CE, SGS, RoHS, Is09001
  • Software and Compatibility:Corel Draw,PC Only
  • Actual Dimensions:685mm*500mm*320mm
  • Positioning Sensor Type:Optical Sensor
  • Package Dimensions:820mm*680mm*550mm
  • Mechanical Resolution:0.009mm
  • Power:150W
  • Transport Package:Wooden Package
  • Specification:685mm*500mm*320mm
  • Trademark:saga
  • Origin:Hefei China
  • HS Code:84411000
  • Production Capacity:10000PCS

Description

Power and working environment requirementsVoltages100V~240V 50/60HzPower 150WOperation environmentTemperature +5ºC to +35ºC(Fahreheit 41-95),Humility 30%-75%(Non-condensing)

This parameter is subject to change without prior notice. The company reserves the right of final interpretation
