Automatic Sheet Cutter Cut and Crease Stickers & Cardboards

Hefei Saga Computer Numerical Control Co., Ltd.
  • After-sales Service：Lifetime Service
  • Warranty：1 Year
  • Species：Die Cutting and Creasing Machine
  • Imprinting Type：Rotary Platen
  • Placing Form of Template：Horizontal
  • Die Cutting Tool：Steel Blade

Base Info

  • Model NO.：SG-ASC 1907
  • Computerized：Computerized
  • Automatic Grade：Automatic
  • Application：Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Cardboard
  • Max Cutting Speed：960mm,S
  • Max Cutting Force：750g
  • Maximum Cutting Size：A3+,483*330mm
  • Media Hold Method：Vacuum Suction
  • Cutting Control System：Digital Servo System
  • Positioning Sensor Type：Digital Camera (CCD)
  • Cutting Media Types：Self-Adhesive Sticker, Cardboard, PVC, etc.
  • Software and Compatibility：Corel Draw,Adobe Illustrator PC Only, Compatible F
  • Actual Dimensions：787mm*740mm*1320mm
  • L 787mm× W 740mm× H 1320mm：970mm*970mm*880mm
  • Gw/Nw：146,114kg
  • Power：1.1-1.3kw
  • Working Voltage110-240V 50/60Hz：110-240V 50,60Hz
  • Certification：CE, SGS, RoHS, Is09001
  • Transport Package：Wooden Package
  • Specification：787mm*740mm*1320mm
  • Trademark：saga
  • Origin：Hefei China
  • HS Code：84411000
  • Production Capacity：10000PCS

Description

Automatic Sheet Cutter Cut and Crease Stickers & CardboardsAutomatic Sheet Cutter Cut and Crease Stickers & CardboardsAutomatic Sheet Cutter Cut and Crease Stickers & Cardboards

Model name

SG-ASC 1907

Cutting control system

X- High-power brushless servo motor
Y- High-power brushless servo motor

Positioning sensor type

Digital Camera (CCD)

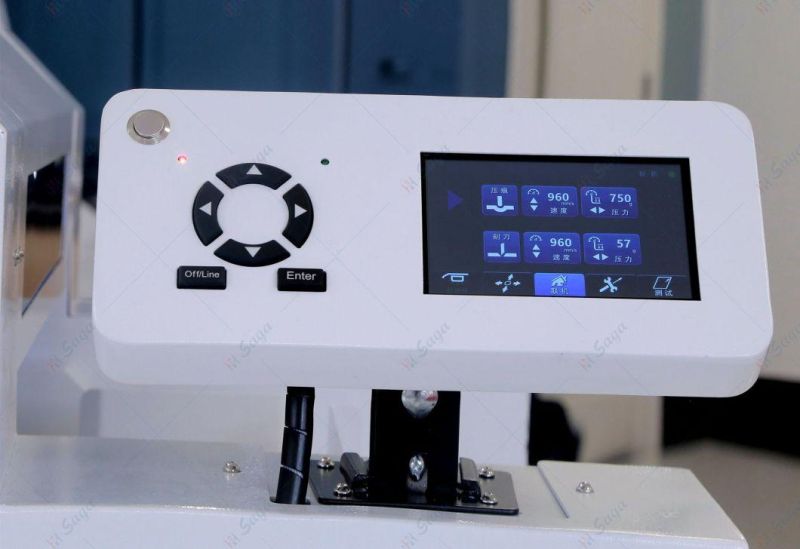

Control panel

5 inch capacitive touch screen

Number of tool holders

Double tool holders

Tools

Blade, creasing tool and pen

Machine performance Media hold method

Vacuum suction

Scanning code type

Mark/QR code

Maximum cutting size

A3+ (483mmX330mm)

Scanning speed

5-10s

Maximum actual cutting speed

12mm/s-960mm/s
12mm/s Step

Maximum Cutting Force

Creasing 0-750gf (3gf Step)
Blade 0-750gf (3gf Step)

Mechanical resolution

0.02mm

Programmable resolution

HPGL0.025mm

Repeat precision

≤0.05

Cutting Media Types

Self-adhesive sticker, cardboard, PVC, etc.

Software and compatibility



Connectivity

USB

Software and compatibility

Corel Draw,Adobe Illustrator PC only, compatible for windows7, 8,10 (USB interfaces )

Power and working environment requirements



Voltage and current

100VAC-120VAC,50/60Hz,Maximum current 6.8A
200VAC-240VAC,50/60Hz,Maximum current3.4A

Power

350W

Voltage and current (Vacuum Pump)

110VAC,50Hz,Rated current 12.4A,60Hz,Rated current 17.2A
220VAC,50Hz,Rated current 6.2A,60Hz,Rated current 8.6A

Power(Vacuum Pump)

50Hz,1.1KW; 60Hz,1.3KW

Stand

Included

Operation environment

Temperature +5°C to+35 °C (41ºF-95ºF), Humility 30% -75% (Non-condensing)

Dimensions and weights



Actual dimensions

L787mm* W740mm*H1320mm

Package dimensions

L970mm* W970mm*H880mm

NW/GW

114kg/146kg


This parameter is subject to change without prior notice. The company reserves the right of final interpretation
