• Model NO.：KL1300ASD with collection Section
• Cardboard Thickness(T)：1-3mm
• Speed：≤50m,Min
• Power：16.2kw,380V3phase
• Machine Weight：5500kg
• Transport Package：Wooden Box
• Specification：L10160*W4750*H1930mm
• Trademark：zhengrun
• Origin：Zhejiang Wenzhou
• HS Code：84414000
• Production Capacity：20,Month

Basic Info.

Model NO. KL1300ASD with collection Section Cardboard Thickness(T) 1-3mm Speed ≤50m/Min Power 16.2kw/380V3phase Machine Weight 5500kg Transport Package Wooden Box Specification L10160*W4750*H1930mm Trademark zhengrun Origin Zhejiang Wenzhou HS Code 84414000 Production Capacity 20/Month

Product Description

KL1300ASD Cardboard Cutter with Collction System
 Use: It is mainly used for cutting material like hardboard, industrial cardboard, grey cardboard, etc. It is necessary for hardcover books, boxes, etc. Features: 1. Feeding large size cardboard by hand and small size cardboard automatically. Servo controlled and setup via touch screen. 2. Pneumatic cylinders control the pressure, easy adjustment of cardboard thickness. 3. The safety cover is designed according to European CE standard. 4. Adopt the concentrated lubrication system, easy to maintain. 5. Main structure is made of casting iron, stable without bending. 6. The crusher cuts the waste into small pieces and discharges them with conveyor belt.
Technical Parameters

Model	FD-KL1300A
Cardboard width	W≤1300mm, L≤1300mm W1=150-600mm, W2≥60mm
Cardboard thickness	1-3mm
Production speed	≤50m/min
Precision	+-0.05mm
Motor power	16.2kw/380v 3phase
Air supply	10L/min 0.6Mpa
Machine weight	1250kg
Machine dimension	L10160×W4750×H1930mm

01 Feeding cardboard by two servo motors separately

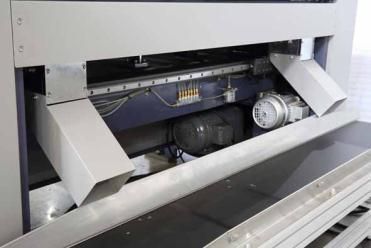

02 Waste crusher





03 Automatic knife adjustment device





sample



Layout:


Packaging & Shipping



Our Services

Pre-Sales Service
* Inquiry, consulting support & profeesional technical solution.
* Sample testing support.
* Welcome to visit our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine and maintain the machine.
* Engineers available to service machinery overseas.
* 1 Year Warranty & Lifetime technical support.

Company Information






Zhejiang Zhengrun Machinery Co., Ltd. established in July 1997. Location at Pingyang Zhenglou Industrial Area (former name was Ruian Fuda and Wenzhou zhengrun machiunery co., ltd). Zhengrun is the first domestic brand who start the business of packaging equipment production in China. The company is mainly engaged in the R&D, design, production and sales services of the rigid box machinery and case maker machinery.
Zhengrun has mordern standard factory buildings cover 66,000 square meters, around 200 employees, with professional R&D and production team and the world's leading super-large production. processing center. We have advanced CNC tooling machines, processing equipment and international professional equipment.
Our company has been admitted to ISO9001 Quality Management System Certificate & CE Certificate. With the rights of self-managed import and export, our products have been exported to more than 80 countries and regions, such as Europe, America, South Africa, the Middle East and the Southeast Asia, i.e. USA, EU market, Russia, India, Korea, Turkey etc. There are agency networks all over the world.
Quality builds Zhengrun Brand. High quality, professional solution, diversified designs, well services and favorable price are our advantages. Customized orders are available according to customer's requirement.
Our website http://zhengrunmachinery.en.made-in-china.com.
Production application in packaging of electronics, cosmetics, jewelry, wine, liqour, clothing & shoes, food & drinks(i.e. moon cakes, tea, chocolates, etc. ), desk calendars, hard back books and notebooks.
You are warmly welcome to visit our factory and cooperate with us on the basis of long-term mutual benefits.
